Lead-acid Replacement Lithium Iron Phosphate battery 25.6V 100AH
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 과부하 보호 | 예 | 출력 전압 | 110V |
|---|---|---|---|
| 무료 OEM 서비스 | 지원하다 | 쇼트 회로 보호 | 예 |
| 색상 | 하얀색 | 보증 | 5 년 |
| 강조하다 | Lead-acid replacement lithium battery 25.6V,Lithium iron phosphate battery 100AH,G Tech UPS lithium battery |
||
제품 설명

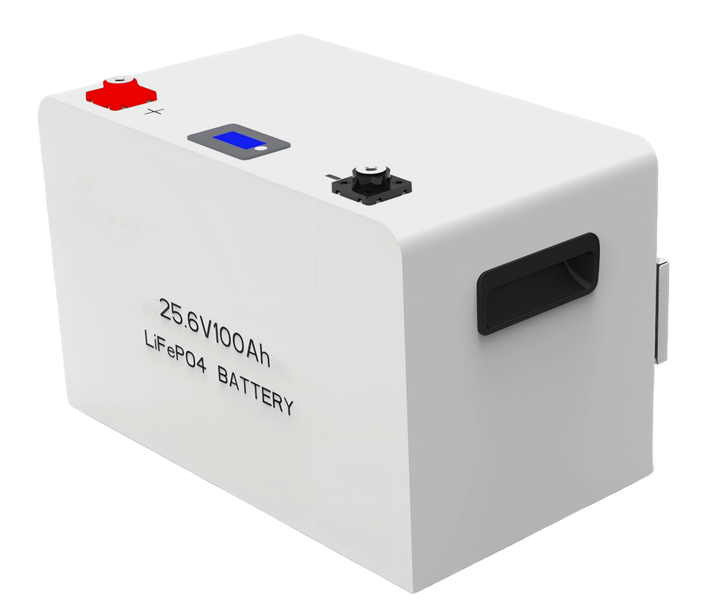

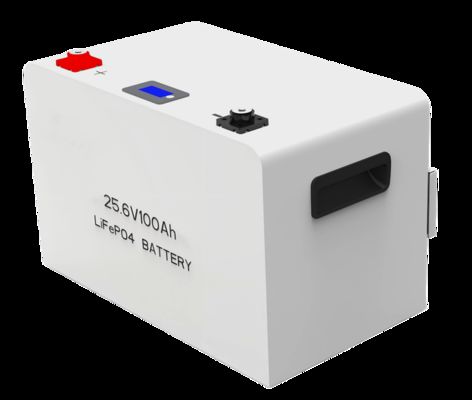

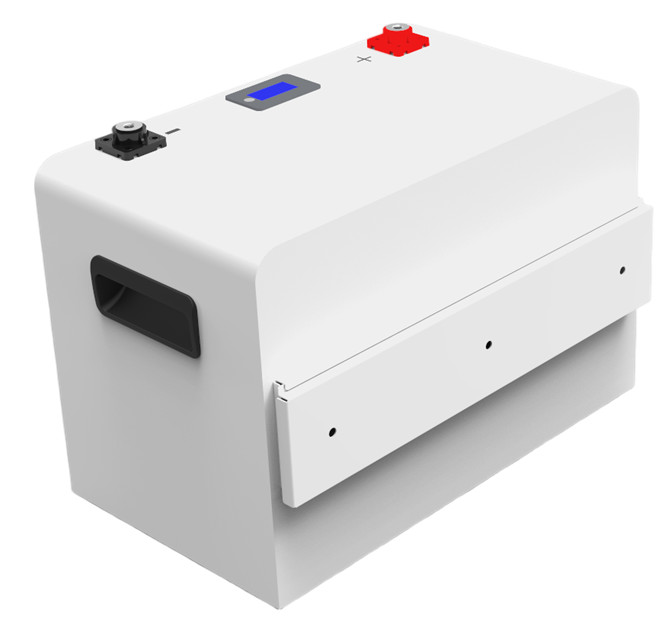

LK25.6-100 (Metal Case Type, Lead-acid Replacement)
Product Overview
The LK25.6-100 is a high-performance LiFePO₄ (Lithium Iron Phosphate) battery designed as a drop-in replacement for traditional lead-acid batteries.
With a nominal voltage of 25.6 V and capacity of 100 Ah (2.56 kWh), it offers superior energy efficiency, long lifespan, and enhanced safety.
Encased in a durable metal housing, the LK25.6-100 provides excellent mechanical strength and IP66 waterproof protection, making it ideal for solar systems, UPS, RVs, boats, and industrial backup applications.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Rated Voltage & Capacity | 25.6 V / 100 Ah |
| Rated Energy | 2.56 kWh |
| Operating Voltage Range | 21.6 V – 29.2 V |
| Charging Voltage | 29.2 V |
| Max Continuous Charge/Discharge Current | 100 A |
| Peak Discharge Current | 200 A (≤ 50 ms) |
| Cycle Life | > 4500 cycles @ 80 % DOD |
| Terminal Type | M8 terminals |
| Protection | Over-charge, over-discharge, over-current, short-circuit, over-temperature, IP66 waterproof |
| Storage Temperature | 25 °C ± 5 °C (6 months) |
| Operating Temperature | -20 °C ~ +60 °C |
| Humidity | 0 – 95 % (no condensation) |
| Noise | < 40 dB (@ 1 m) |
| Dimensions (L×W×H) | 483 × 170 × 240 mm |
| Net Weight | 19.5 kg |
| Certifications | UN38.3, MSDS, CE |
| Warranty | 5 Years |
Key Features
-
Direct Lead-acid Replacement – Drop-in compatible with most 24 V systems; simple installation without modifications.
-
Long Cycle Life – Over 4500 cycles, 4–6 times longer lifespan than standard lead-acid batteries.
-
High Efficiency & Energy Density – Up to 95 % round-trip efficiency with stable voltage output.
-
Rugged Metal Housing – Heavy-duty steel enclosure with IP66 waterproof protection, suitable for outdoor and industrial use.
-
Lightweight Design – Only 19.5 kg, about half the weight of equivalent lead-acid batteries.
-
Comprehensive Protection – Built-in BMS safeguards against overcharge, over-discharge, short-circuit, and temperature extremes.
-
Wide Temperature Range – Reliable performance in both high and low ambient temperatures.
-
Maintenance-Free – No acid leakage, no corrosion, and no need for regular maintenance.
Typical Applications
-
Solar and Renewable Energy Storage – Ideal for 24 V off-grid or hybrid solar systems.
-
UPS and Backup Power – Reliable and long-lasting backup for industrial, telecom, or office systems.
-
RV / Caravan / Marine Power – Compact, vibration-resistant, and safe for mobile applications.
-
Industrial and Commercial Equipment – Perfect for forklifts, lighting towers, and portable power units.
-
Home Energy Storage – Small-scale backup or daily cycling applications.
Our Services
-
Complete Battery Solutions – From product design to energy system integration.
-
Technical Support – Professional guidance on inverter compatibility, wiring, and configuration.
-
OEM / ODM Customization – Options for metal housing, capacity, communication interface (RS485/CAN), and private labeling.
-
Quality Assurance – Every unit tested for safety, performance, and reliability before delivery.
-
After-sales Guarantee – 5-year warranty with lifetime technical support.
-
Export-grade Packaging – Secure wooden crate packaging ensures safe global transportation
